500mm Hydraulic Rebar Shear Line with 42kw Motor

브랜드 이름:	GUTE
모크:	1
가격:	US$58.000

자세한 정보

제품 설명

자세한 정보

원래 장소:

사천, 중국

전압:

380V

차원:

30*5*3 m

힘:

42 kW

무게:

15000 KG

최첨단 너비:

500mm

전단 모드:

유압 전단

롤러 속도:

0-100m/분 조절 가능

최대 전단 길이:

12m

최소 전단 길이:

1.4m

전단 정확도:

± 5mm

전단 주파수:

≤12n/분

사일로 시리즈:

평가 된 전력:

42KW

총 중량:

15t

길이 제어 모드:

서보 기구

강조하다:

500mm hydraulic rebar shear line

42kw motor rebar cutter

heavy-duty rebar shear line

제품 설명

High Efficiency Custom Cutting Edge Width 500mm Rebar Shear Line SGS150

Attribute	Value
Video Outgoing-Inspection	Provided
Machinery Test Report	Provided
Core Components	Motor
Voltage	380V
Dimension (L×W×H)	30×5×3 m
Power (kW)	42
Weight (kg)	15000
Key Selling Points	Easy to Operate
Warranty	1 Year
Cutting Edge Width	500mm
Shearing Mode	Hydraulic Shearing
Roller Speed	0-100m/min adjustable
Maximum Shear Length	12m
Minimum Shear Length	1.4m
Shear Accuracy	±5mm
Shear Frequency	≤12n/min
Silo Series	3
Rated Power	42kw
Total Weight	15t

CNC Rebar Shear Line SGS150 Features

PLC control system ensures high precision shearing, ideal for steel bars with multiple specifications and small batches
24 fixed length plates with steel structure and servo motor for fast, accurate positioning
Large length blade and inclined blade design enables simultaneous cutting of multiple reinforcing bars
Centralized oil supply system guarantees long operational life
3-level product storage mechanism facilitates efficient collection
Thickened and widened gears with full encapsulation for stable cutting and enhanced safety
High-strength spiral elevator for positioning screws prevents deformation and ensures accuracy
Adjustable cutting length with continuous operation capability and high-speed conveyance
Key-guided chains with rolling friction design for reduced wear and extended service life

Straightening Structure

Forged alloy tool steel straightening wheels offer superior wear and impact resistance. The 30mm thick steel plate construction provides exceptional strength and durability against impact loads.

Multi-Split Type Blade

Our innovative multi-split blade design doubles the lifespan compared to conventional one-piece blades.

Servo Motor System

Equipped with a 16KW high-power servo motor to ensure smooth, consistent traction operation.

Pneumatic Components

Features premium Airtac brand pneumatic components from Taiwan for reliable performance and extended service life. The split thickening blade design (40mm thickness) allows for multiple uses.

Pay-Off System

Includes 2 pay-off units per machine
Maximum carrying capacity of 2500KG per pay-off
Designed for easy disassembly and transportation
Optional brake system available

Automatic Collector (Optional)

Efficiently collects finished stirrups with adjustable quantity settings for simplified packaging.

Application Examples

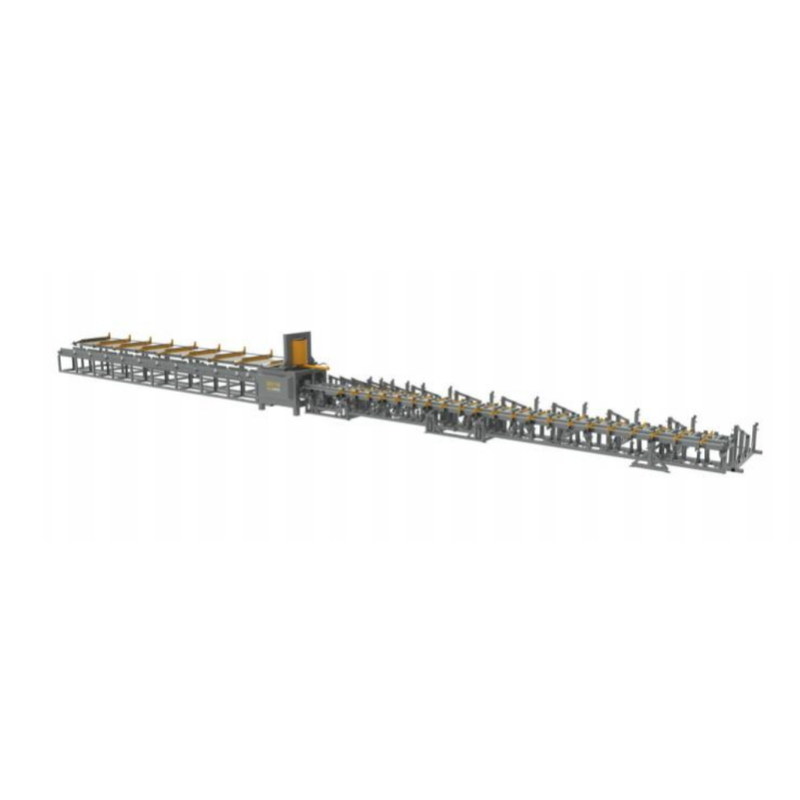

Production Line Overview

Manufacturer Profile

GUTE has been manufacturing construction machinery for 28 years with over 250 skilled workers specializing in steel bar processing equipment.

Exported to more than 70 countries with 70% export share of steel bar bender/cutter machines
200+ agents in China with 10 owned brand shops across provinces
OEM provider for renowned European brands
Global distribution including Russia, Italy, Brazil, Algeria, India, and Middle East
Specialists in reinforcement steel bar bending, shearing, welding, and straightening machines
Expert in R&D and quality control for customized solutions

Transportation

Frequently Asked Questions

What's the producing time and delivery time?

Orders under 5 pieces are typically in stock with delivery to Shanghai port in about 5 days. Larger orders (5+ pieces) require 10-15 working days for production.

What's the MOQ?

Minimum order quantity is 5 pieces. Sample orders of 1 piece are possible with additional port and delivery charges.

What's the departure port?

Standard departure port is Shanghai, with options for Guangzhou, Qingdao, Tianjin, or other Chinese ports.

What's the packing?

Machines are packed on iron pallets with poly wooden cases (no fumigation required).

What's the payment term?

We accept T/T, L/C, DP, Western Union, and PayPal.

Our Service Commitment

24-hour response to all product inquiries
Complete protection of your sales area and private information
Premium quality products at competitive prices
